TECHNICAL SPECIFICATION DATASHEETDoc Ref: ARSASH-SPEC-ARSASH-5000D-ROAIssue Date: Sept 2026
Road Sweepers•Model: 5000D-5.0

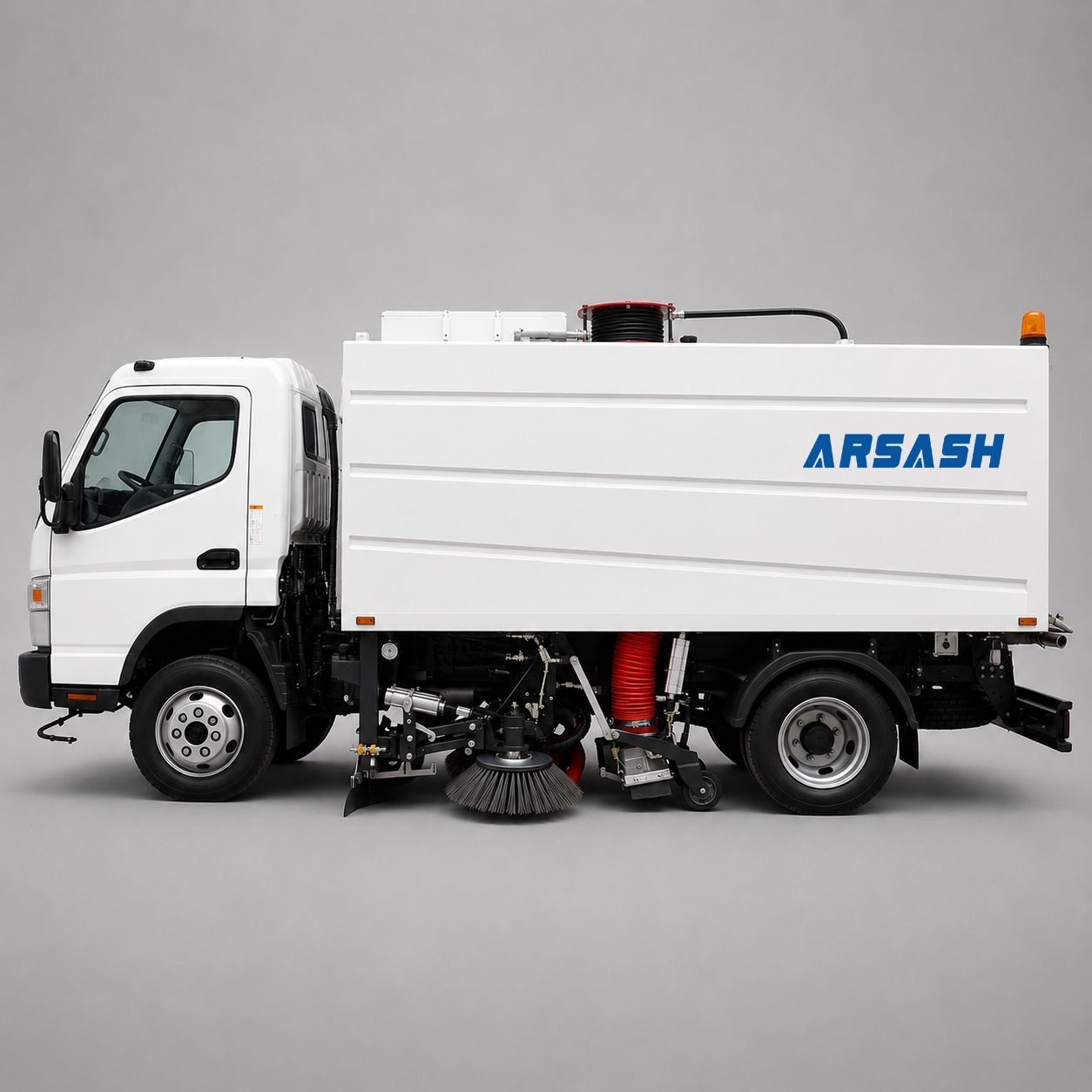

ARSASH 5000D Road Sweeper
Heavy-duty municipal road sweeper designed for highways, airports, and industrial cleaning operations.
ManufacturerARSASH
ComplianceSASO / Saudi Balady
Complete Technical Specifications & Ratings
10 Verified Engineering Parameters| Parameter / Specification | Engineering Rating / Detail |
|---|---|
| Auxiliary Equipment Engine | 120 HP, 4 Cycle, Turbo Diesel |
| Sweeping Performance | 40,000–45,000 m²/h |
| Operating Speed | 5–10 km/h |
| Sweeping Path | 2200–2600 mm |
| Vacuum Fan System | 3400 rpm |
| Hopper Capacity | 5.0 m³ |
| Water Tank | 1500 L CrNi AISI 304 |
| Side Brush Diameter | 450 mm |
| Main Brush Diameter | 1100 mm |
| Greenery Hose Diameter | 150 mm |
Saudi Arabian Operational Environment Guarantee
🌡️ 50°C+ Ambient Thermal Rating
Auxiliary hydraulic coolers and heavy-duty radiator cores prevent thermal derating under harsh desert sun.
🌪️ Sand & Dust Cyclonic Intake
Multi-stage pre-cleaners protect diesel combustion and hydraulic reservoirs from airborne silica sand.
🛠️ Riyadh Direct Parts & Warranty
Bumper-to-bumper warranty backed by factory mobile service teams dispatched anywhere in Saudi Arabia.
